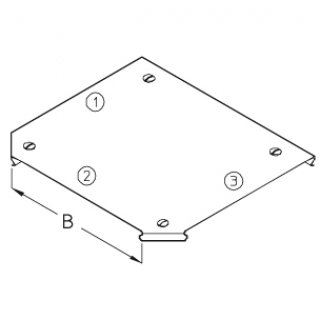

Cable tray branch-piece cover with bar lock
Cable tray branch cover for cable tray branch, positive locking, with additional turning bolts
RADR
-
Karta Katalogowa RADR_PL
pdf | 52.71 KB -
Data Sheet RADR_EN
pdf | 66.22 KB
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| Name | B[mm] | G[kg] | |
|---|---|---|---|
| RADR 05S |
50
|
0,21
|
|
| RADR 10S |
100
|
0,34
|
|
| RADR 20S |
200
|
0,72
|
|
| RADR 30S |
300
|
1,26
|
|
| RADR 40S |
400
|
1,95
|
|
| RADR 50S |
500
|
2,8
|
|
| RADR 60S |
600
|
3,82
|
|
| RADR 60ZM |
600
|
3,82
|
Hot-dip galvanized, according to BS 729 (EN ISO 1461)
| Name | B[mm] | G[kg] | |
|---|---|---|---|
| RADR 05F |
50
|
0,23
|
|
| RADR 10F |
100
|
0,38
|
|
| RADR 20F |
200
|
0,8
|
|
| RADR 30F |
300
|
1,41
|
|
| RADR 40F |
400
|
2,18
|
|
| RADR 50F |
500
|
3,13
|
|
| RADR 60F |
600
|
4,27
|
Stainless steel, according to ASTM 304 / BS 304 S 3
| Name | B[mm] | G[kg] | |
|---|---|---|---|
| RADR 05E |
50
|
0,21
|
|
| RADR 10E |
100
|
0,34
|
|
| RADR 20E |
200
|
0,72
|
|
| RADR 30E |
300
|
1,26
|
|
| RADR 40E |
400
|
1,95
|
|
| RADR 50E |
500
|
2,8
|
|
| RADR 60E |
600
|
3,82
|
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Name | B[mm] | G[kg] | |
|---|---|---|---|
| RADR 05E4 |
50
|
0,21
|
|
| RADR 10E4 |
100
|
0,34
|
|
| RADR 20E4 |
200
|
0,72
|
|
| RADR 30E4 |
300
|
1,26
|
|
| RADR 40E4 |
400
|
1,95
|
|
| RADR 50E4 |
500
|
2,8
|
|
| RADR 60E4 |
600
|
3,82
|
Magnelis® coating (DIN EN 10346)
| Name | B[mm] | G[kg] | |
|---|---|---|---|
| RADR 05ZM |
50
|
0,21
|
|
| RADR 10ZM |
100
|
0,34
|
|
| RADR 20ZM |
200
|
0,72
|
|
| RADR 30ZM |
300
|
1,26
|
|
| RADR 40ZM |
400
|
1,95
|
|
| RADR 50ZM |
500
|
2,8
|
|
| RADR 60ZM |
600
|
3,82
|
